20' x 5' Reinforced Concrete Blast Wall
The High-Clearance Freestanding Perimeter Defense & Security System
As our second tallest blast wall, the 20-foot reinforced precast concrete blast wall delivers exceptional stopping power, advanced explosion mitigation, and extended vertical protection. Engineered as a towering freestanding blast barrier, this 20' x 5' panel is specifically designed to deflect massive shockwaves, block critical lines of sight, and contain high-velocity fragmentation for critical infrastructure and high-risk facilities.
Because threat levels and engineering requirements vary by facility, these walls are manufactured in four distinct concrete strength tiers. Ranging from a standard 5,000 PSI for baseline safety up to a military-grade 21,000 PSI Ultra-High-Performance Concrete (UHPC), you can precisely calibrate your perimeter defenses to combat localized threat vectors without requiring permanent, poured-in-place anchoring.
Tiered PSI Options
5,000 PSI (Standard Safety): Engineered for standard industrial safety, commercial perimeter security, and foundational force protection.
7,000 PSI (Heavy Industrial): Ideal for heavy industrial zoning, standard chemical containment, and enhanced asset isolation.
Mid-Tier Options: Tailored for high-risk energy infrastructure, power grid substation protection, and severe manufacturing environments.
21,000 PSI (Ultra-High-Performance): Extreme military-grade protection designed to withstand severe blast-load scenarios, ordnance testing, and federal ATFP (Anti-Terrorism/Force Protection) mandates.
Key Features
Tongue and Groove Interlocking System: Engineered with precision tongue and groove edges, allowing each panel to lock together securely. This creates a remarkably tight, gap-free fit that ensures continuous structural integrity and eliminates vulnerabilities across the entire perimeter line.
High-Clearance Protection: The towering 20-foot height provides exceptional line-of-sight blocking to defend against surveillance and superior upward overpressure deflection.
100% Made in the USA & BABA Compliant: From the initial pouring of the concrete to the steel reinforcement, every component is rigorously sourced and produced domestically, ensuring seamless procurement for federally funded security, DOT, and DOD projects under the Build America, Buy America (BABA) Act.
Freestanding Stability: Fully self-supporting engineering allows for immediate deployment and modular continuous configuration without deep ground excavation or permanent footings.
Heavy Steel Matrix Reinforcement: A dense internal domestic steel rebar cage prevents structural fragmentation and maintains wall integrity under intense kinetic impact.
Swift Lift System Integrated: Cast-in quick-connect anchors ensure rapid, highly secure, and safe handling. This system allows the heavy precast elements to be repeatedly handled with speed and economy during installation or staging reconfigurations.
Product Specifications
| Specification | Detail |
| Category | Blast Wall |

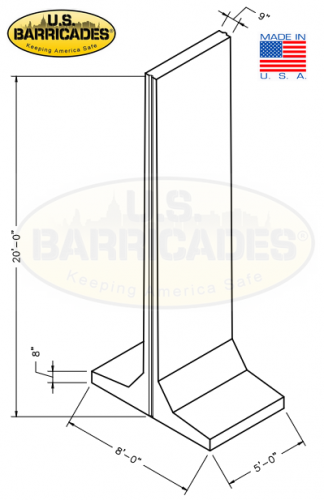

| Dimensions | 20 ft H x 5 ft W |
| Concrete Strength | 4 Tiers: 5,000 PSI to 21,000 PSI |
| Material | Domestic steel-reinforced precast concrete |
| Joint System | Tongue and Groove Interlock |
| Compliance | 100% Made in USA, BABA & Berry Amendment Compliant |
| Design Type | Freestanding Blast Barrier |
| Handling System | Swift Lift System Pin Anchors |
Nationwide Heavy-Haul Logistics & Site Rigging
Transporting and placing a 20-foot freestanding concrete blast wall requires specialized freight coordination and heavy-duty rigging equipment. We provide turnkey, nationwide logistics solutions to deliver your security barriers safely, legally, and directly to your footprint.
Specialized Fleet Deployment: Due to the extreme height and concentrated weight of high-PSI concrete, transporting the 20-foot panels requires multi-axle heavy-haul configurations—including drop-deck and step-deck trailers—to safely support and distribute the load across state lines.
Swift Lift Rigging System: To offload, maneuver, and set these massive elements, the panels utilize the Swift Lift System. This integrated, quick connect-disconnect system allows the precast concrete to be handled repeatedly with maximum speed, mechanical safety, and economy. The matching lifting eyes attach to the cast-in anchors instantly, providing a secure hold that will not slip during crane operations.
Just-in-Time Site Coordination: Our logistics dispatchers coordinate directly with your on-site rigging crew and crane operators. We synchronize arrival times to eliminate crane downtime, optimize site flow, and ensure a seamless offloading sequence.
